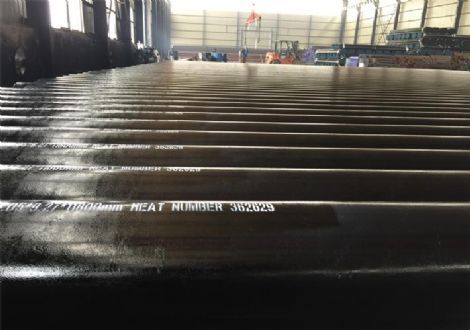

API 5L PLS2/PLS1 CASING PIPE



Introduction

Tubing is a relatively small-diameter pipe that is run into a well to serve as a conduit for the passage of oil and gas to the field surface facilities for processing. Tubing must be adequately strong to resist loads and deformations associated with production and work overs. Further, tubing must be sized to support the expected rates of production of oil and gas.
API Spec 5CT – Specification 5CT/ISO 11960,GB/T 19830-2011 Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells


Standards and Technical Conditions for Supply: API Spec 5CT  ISO13680
Uses: Tubing is used for extracting oil or gas from wells.
Dimension: OD 48.26-114.3mm  WT 3.18-16mm
Grade: J55, N80-1,N80-Q, L80-1, L80-9Cr,L80-1,C90, T95, C95, P110, Q125 .
Tread types: NUE, EUE,VAM,special clearance,VAM TOP,NEW VAM.

Product:  Tubing Pipe, Oil Tubing, API Tubing Well Tubing, Tubing
Application:   Used for extracing Oil or Gas from Wells
Size:  OD: 48.26mm-114.3mm
 WT: 3.18-16mm
 LENGTH: R1, R2, R3
Pipe Standard:   API 5CT PSL1/PSL2  J55,K55,N80-1,N80-Q,
 API 5CT PSL1/PSL2  L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125
Thread:  NUE, EUE, VAM, STC, LTC, BTC, XC, VAM TOP, NEW VAM,HYDRILL CS
Special Service  Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
Accessories:   Pup Joint, Coupling, Drill Collar, Crossover etc.
