Item
|

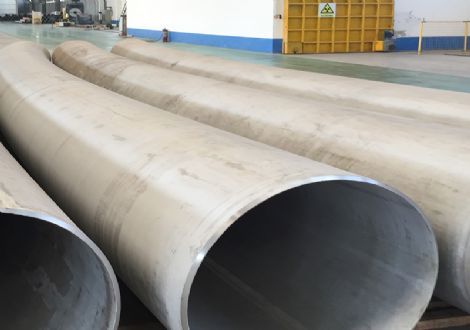

Small Diameter Stainless Steel pipe
|
|
Standard
|
ASTM A249/A213/A269/A554/A270/A312/A268/A778/A790
|
|
DIN11850/17456/17458/SMS/ISO2037/ISO1127/EN10217-7 EN 10216-5
|
|
Grade
|
Austenite:201/202/301/304/304L/304N/304LN/309S/310S/316/316L/316TI
|
|
Ferritic:409,409L,410,420,430,431,439,440,441,444
|
|
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
|
|
Nickel Alloy:Hastelloy,Inconel,Monel Alloy
|
|
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
|
|
Main Material
|
a) 304/304L (Ni: 8.0%-12.0%, Cr:18.0%-20.0%)
|
|
b) 316/316L (Ni: 10.0%-15.0%, Cr:16.0%-18.0% Mo: 2.0%-3.0%)
|
|
c) 321(Ni: 9.0%-12.0%, Cr:17.0%-19% Ti:5C-0.7)
|
|
d) 347(Ni: 9.0%-12.0%, Cr:17.0%-19% Nb:10C-1.1)
|
|
Size Range
|
6.35mm-50.8mm
|
|
Thickness
|
0.5-20mm
|
|
Length
|
1000-12000mm or as required
|
|
Tolerance
|
a) Outer Diameter:according to standards or as required.
|
|
b) Thickness: +/- 10% or as required.
|
|
c) Length: -0 +5mm
|
|
Finish
|
Mirror,Satin/Hairline Polished,MF,AP, BA(bright&annealed) or as required
|
|
Application
|
Boiler, Heat Exchanger, Construction, Pharmacy, Power, Petrochemical
|
|
Machinery and Auto industry...
|
