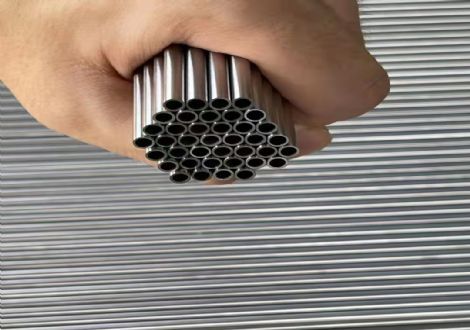

Item: Stainless steel capillary pipe / stainless steel capillary tube
1) Material:201  304  316 etc
2) Outside diameter: 0.5mm-10mm
3) Wall thickness: 0.1mm-1.5mm
4) Length: 5.8m, 6m, 11.8m, 12m, or as required
5) Surface: Pickling, annealing, polished(180#-600#), bright, sand blast, hair line, brush, satin, snow sand, embossed, titanium, etc
6) Export to: Indonesia, Singapore, USA, UK, Iran, India, Dubai, Peru, Ireland, Holland, Canada, Thailand, Brazil, Ukraine, Saudi Arabai, Egypt, Spain, Ireland, South Korea,South Africa,Chile,etc
Our stainless steel pipe and duplex stainless steel pipe has best quality with low cost and short delivery, welcome to contact for details. We are sure your inquiry or requirments will get prompt attention.

OD*WT	OD*WT	OD*WT	OD*WT	OD*WT	OD*WT	OD*WT
0.4*0.11	1.4*0.15	2.1*0.2	3*0.75	4.5*0.25	7*0.3	10*0.4
0.5*0.1	1.4*0.2	2.1*0.25	3*0.8	4.5*0.3	7*0.4	10*0.5
0.5*0.15	1.4*0.3	2.2*0.15	3*0.9	4.5*0.4	7*0.5	10*0.8
0.6*0.1	1.4*0.35	2.2*0.2	3*1.0	4.5*0.5	7*0.6	10*1.0
0.6*0.125	1.4*0.4	2.2*0.3	3*1.2	4.5*0.8	7*0.7	10*1.5
0.6*0.15	1.45*0.1	2.2*0.5	3.2*0.15	4.5*1	7*0.8	10*2
0.63*0.15	1.5*0.1	2.3*0.15	3.2*0.2	4.7*0.2	7*0.85	11*0.25
0.7*0.1	1.5*0.125	2.3*0.2	3.2*0.25	4.8*0.5	7*1.0	11*0.3
0.7*0.15	1.5*0.15	2.3*0.3	3.2*0.3	5*0.15	7*1.5	11*0.4
0.8*0.1	1.5*0.2	2.34*0.12	3.2*0.35	5*0.2	7.2*0.45	11*0.5
0.8*0.125	1.5*0.25	2.35*0.9	3.2*0.4	5*0.25	7.5*0.2	11*1
0.8*0.15	1.5*0.3	2.4*0.15	3.2*0.5	5*0.3	7.5*0.3	11*1.5
0.8*0.2	1.5*0.35	2.4*0.2	3.2*0.8	5*0.35	7.5*0.5	12*0.25
0.9*0.1	1.5*0.4	2.4*0.5	3.5*0.15	5*0.4	7.5*0.8	12*0.3
0.9*0.15	1.6*0.1	2.4*0.75	3.5*0.2	5*0.5	7.5*1.0	12*0.5
0.9*0.2	1.6*0.12	2.5*0.15	3.5*0.25	5*0.6	7.8*0.5	12*1
1.0*0.1	1.6*0.15	2.5*0.2	3.5*0.3	5*0.7	8*0.15	13*0.5
1.0*0.125	1.6*0.2	2.5*0.25	3.5*0.4	5*0.8	8*0.2	13*1
1.0*0.135	1.6*0.25	2.5*0.3	3.5*0.5	5*1	8*0.25	14*0.5
1.0*0.15	1.6*0.3	2.5*0.4	3.5*0.7	5*1.5	8*0.3	14*1
1.0*0.16	1.6*0.4	2.5*0.5	3.5*1.0	5.5*0.2	8*0.4	15*0.5
1.0*0.2	1.65*0.3	2.5*0.6	3.7*0.2	5.5*0.25	8*0.5	15*1
1.0*0.25	1.7*0.15	2.5*0.7	3.7*0.5	5.5*0.3	8*0.6	16*0.5
1.0*0.3	1.7*0.2	2.5*0.85	3.8*0.2	5.5*0.5	8*0.7	16*1
1.0*0.35	1.7*0.25	2.6*0.1	3.8*0.25	5.5*0.6	8*0.8	17*0.5
1.1*0.1	1.75*0.2	2.6*0.15	4*0.15	5.5*0.75	8*1	18*0.5
1.1*0.12	1.8*0.1	2.6*0.2	4*0.2	5.5*0.8	8*1.5
1.1*0.125	1.8*0.15	2.6*0.5	4*0.25	5.5*1	8*2
1.1*0.135	1.8*0.2	2.7*0.15	4*0.3	5.8*0.5	8.5*0.2
1.1*0.14	1.8*0.25	2.7*0.2	4*0.4	5.8*0.7	8.5*0.25
1.1*0.15	1.8*0.3	2.6*0.5	4*0.5	6*0.15	8.5*0.3	下面316L材质
1.1*0.2	1.8*0.4	2.8*0.15	4*0.6	6*0.2	8.5*0.5	2*0.5
1.2*0.1	1.9*0.1	2.8*0.2	4*0.7	6*0.25	8.5*1.0	6*0.3
1.2*0.125	1.9*0.15	2.8*0.5	4*0.75	6*0.3	9*0.2	3*0.5
1.2*0.135	1.9*0.2	2.8*0.9	4*0.8	6*0.4	9*0.25	7*0.3
1.2*0.15	1.9*0.25	2.9*0.3	4*0.9	6*0.5	9*0.3	2*0.4
1.2*0.2	2*0.1	3*0.15	4*1.0	6*0.6	9*0.4	0.8*0.15
1.2*0.25	2*0.125	3*0.2	4.2*0.2	6*0.8	9*0.5	5*1
1.2*0.3	2*0.15	3*0.25	4.2*0.25	6*1.0	9*0.8	6*1
1.3*0.1	2*0.2	3*0.3	4.2*0.3	6*1.5	9*0.9	8*1
1.3*0.12	2*0.25	3*0.35	4.2*0.4	6.35*1.125*4.1	9*1
1.3*0.125	2*0.3	3*0.4	4.2*0.5	6.5*0.2	9*1.5
1.3*0.135	2*0.35	3*0.5	4.3*1.1	6.5*0.25	9.5*0.5
1.3*0.15	2*0.4	3*0.6	4.5*0.15	6.5*0.3	9.5*0.7
1.3*0.175	2*0.45	3*0.7	4.5*0.2	6.5*0.5	9.5*1
1.3*0.2	2*0.5			6.5*0.8	9.7*0.25
1.3*0.25	2*0.6			6.5*1	10*0.2
1.3*0.3	2*0.7			7*0.2	10*0.25
1.4*0.1	2.1*0.15			7*0.25	10*0.3
Material：201 304 304L 316 316L stainless steel capillary tube
